64GB AI SBC Embedded System NVIDIA Jetson AGX Orin Developer Kit PCIe Gen 4 16 Lanes MIPI CSI-2

Brand Name : NVIDIA

Model Number : Jetson AGX Orin Developer Kit

Place of Origin : USA

MOQ : 1

Price : $2500-$2600 \set

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 1+set+4weeks

Delivery Time : 15-30 work days

Packaging Details : 120mm x 120mm x 75mm

NAME : 64GB AI SBC Embedded System NVIDIA Jetson AGX Orin Developer Kit PCIe Gen 4 16 Lanes MIPI CSI-2

Keyword : 64GB AI SBC Embedded System NVIDIA Jetson AGX Orin Developer Kit PCIe Gen 4 16 Lanes MIPI CSI-2

Adaptation core : Jetson AGX Orin 64GB

USB Type-C : 2x USB 3.2 Gen2 with USB-PD support

M.2 Key M : x4 PCIe Gen 4

AI Performance : 275 TOPs

Memory : 64GB 256-bit LPDDR5 204.8 GB/s

Storage : 64GB eMMC 5.1

Vision Accelerator : PVA v2.0

Display : DisplayPort 1.4a (+MST)

Single package size : 120mm x 120mm x 75mm

Contact Now

64GB AI SBC Embedded System NVIDIA Jetson AGX Orin Developer Kit PCIe Gen 4 16 Lanes MIPI CSI-2

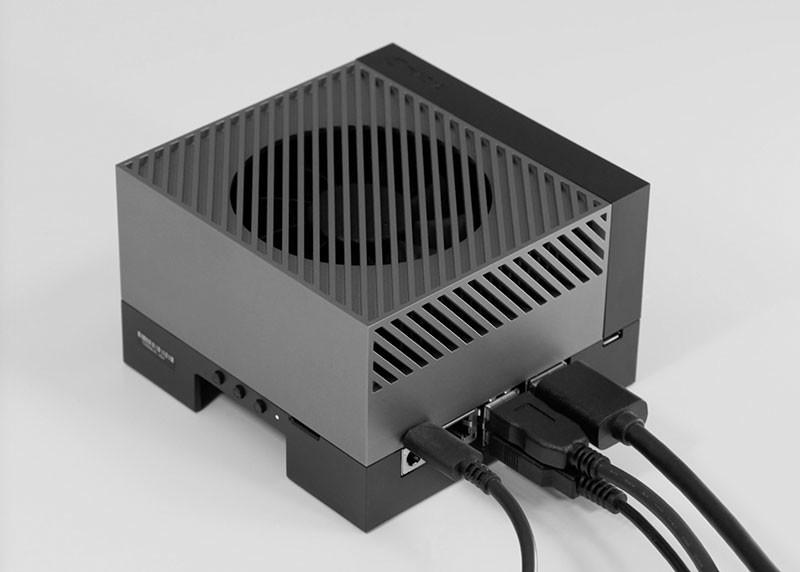

NVIDIA Developer Kit (NVIDIA Jetson AGX Orin Developer Kit)
The NVIDIA AI kit (AGX Orin developer kit) is produced by NVIDIA, the industrial embedded system letting you create advanced robotics and edge AI applications for manufacturing, logistics, retail, service, agriculture, smart city, healthcare, and life sciences.The 12-core CPU on Jetson AGX Orin enables 1.7x the performance compared to the 8-core NVIDIA Carmel CPU on Jetson AGX Xavier. Customers can use the enhanced capabilities of the Cortex-A78AE including the higher performance and enhanced cache to optimize their CPU implementations.NVIDIA Jetson AGX Orin brings support for 1.4x the memory bandwidth and 2x the storage of the Jetson AGX Xavier, enabling 32 GB of 256-bit LPDDR5 and 64 GB of eMMC. The DRAM supports a max clock speed of 3200 MHz, with 6400 Gbps per pin, enabling 204.8 GB/s of memory bandwidth. Figure 8 highlights how each of the various components interact with the Memory Controller Fabric and the DRAM.

NVIDIA Jetson AGX Orin Technical Specifications

AI Performance

275 TOPS (INT8)

GPU

NVIDIA Ampere architecture
with 2048 NVIDIA CUDA® cores and 64 Tensor Cores
CPU 12-core Arm Cortex-A78AE v8.2 64-bit CPU
3MB L2 + 6MB L3

Vision Accelerator
PVA v2.0
Memory

32GB 256-bit LPDDR5

204.8 GB/s
Storage

64GB eMMC 5.1
Display 1x 8K60 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1
CSI Camera

Up to 6 cameras (16 via virtual channels*)
16 lanes MIPI CSI-2
D-PHY 1.2 (up to 40Gbps) | C-PHY 1.1 (up to 164Gbps)
Safety Cluster Engine -
Video Encode

2x 4K60 | 4x 4K30 | 8x 1080p60 | 16x 1080p30 (H.265)
Video Decode

1x 8K30 | 3x 4K60 | 6x 4K30 | 12x 1080p60 | 24x 1080p30 (H.265)

UPHY

2 x8 (or 1x8 + 2x4), 1 x4, 2 x1 (PCIe Gen4, Root Port & Endpoint)
3x USB 3.2

Single-lane UFS
Networking

1x GbE
4x 10GbE
USB

USB Type-C connector: 2x USB 3.2 Gen2
USB Type-A connector: 2x USB 3.2 Gen2, 2x USB 3.2 Gen1
USB Micro-B connector: USB 2.0
Other I/O

4x USB 2.0
4x UART, 3x SPI, 4x I2S, 8x I2C, 2x CAN, DMIC & DSPK, GPIOs
Power

15W | 30W | 50W
Mechanical

100mm x 87mm
699-pin Molex Mirror Mezz Connector Integrated Thermal Transfer Plate


*Virtual Channel related camera information for Jetson AGX Orin is not final and subject to change.
** Refer to the Software Features section of the latest NVIDIA Jetson Linux Developer Guide for a list of supported features

Reference Carrier Board

Camera 16 lane MIPI CSI-2 connector
DisplayPort DisplayPort 1.4a (+MST)
M.2 Key M x4 PCIe Gen 4
M.2 Key E x1 PCIe Gen 4, USB 2.0, UART, I2S
USB Type-A 2x USB 3.2 Gen2
2x USB 3.2 Gen1
USB Type-C 2x USB 3.2 Gen2 with USB-PD support
USB Micro-B USB 2.0
PCIe x16 PCIe slot:
Lower x8 PCIe Gen4
MicroSD slot UHS-1 cards up to SDR104 mode
Other 40-pin header (I2C, GPIO, SPI, CAN, I2S, UART, DMIC)
12-pin automation header
10-pin audio panel header
10-pin JTAG header
4-pin fan header
2-pin RTC battery backup connector
DC power jack
Power, Force Recovery, and Reset buttons
