12V AI Edge Computing Mini PC Windows Embedded GPU For Vehicles

Name: 12V AI Edge Computing Mini PC Windows Embedded GPU For Vehicles
Brand: PLINK
Price: 1 USD

China 12V AI Edge Computing Mini PC Windows Embedded GPU For Vehicles factory

Brand Name : PLINK

Model Number : ORIN32-8F5E2

Place of Origin : China

MOQ : 1set

Price : To be discussed

Payment Terms : T/T, D/P, D/A, L/C

Delivery Time : 15-30 work days

NAME : 12V AI Edge Computing Mini PC Windows Embedded GPU For Vehicles

Keyword : 12V AI Edge Computing Mini PC Windows Embedded GPU For Vehicles

AI Performance : 200 TOPS

GPU : 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3

Memory : 32GB 256-bit LPDDR5 204.8GB/s

Storage : 64GB eMMC 5.1

Color : Silver

USB Type-A : 1 x USB 3.1

USB Micro-B : 1 x Type B (OTG)

GPIO(3.3V) : *4

SPI(3.3V) : *1

I2C(3.3V) : *2

RS 232 : *2

CAN : *2

Dimensions : 238 mm × 222 mm × 67 mm

Weight : 2950g

Contact Now

12V AI Edge Computing Mini PC Windows Embedded GPU For Vehicles

Mini PC Windows Embedded

NVIDIA Ampere GPU

Embedded Automation Computers (ORIN32-8F5E2)

NVIDIA Jetson AGX Orin Module

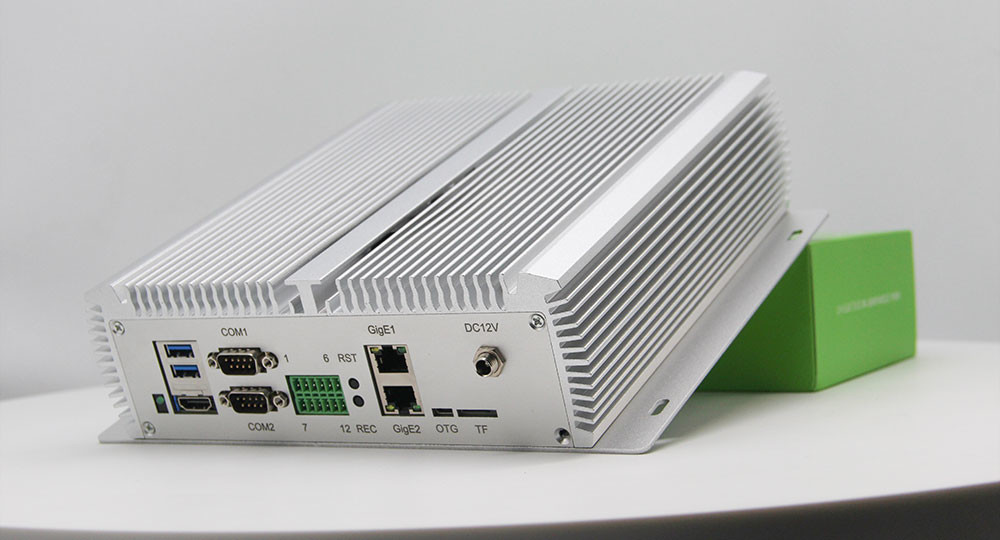

ORIN32-8F5E2 is an industrial PC box with NVIDIA Jetson AGX Xavier and AGX ORIN module. and it is with multi chip module GPU, is designed based on worse environmental conditions and has good characteristics such as anti-seismic and dust-proof, and is suitable for V2X and other fields.

8F5E2 provides M.2 ports, MiniPCIe ports, which is suitable for multi-network port scenarios.

Type-A USB3.0 standard connector
When equipped with AGX ORIN, it supports USB3.1 function and is backward compatible;

Type-B micro USB interface
When equipped with AGX ORIN, only used for burning system

NVIDIA Jetson AGX Orin 32G Embedded Computer

Name	ORIN32-8F5E2
Module	NVIDIA Jetson AGX Orin 32GB
AI Performance	200 TOPS
CPU	8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3
GPU	1792-core NVIDIA Ampere architecture GPU with 56 Tensor Cores
Memory	32GB 256-bit LPDDR5 204.8GB/s
Storage	64GB eMMC 5.1
USB3.1 Type-A	1*
Micro-B	1* Type B (OTG)
Networking	2* 10/100/1000 Ethernet/RJ45
Temperature	-20℃ ～ 65℃
Power	DC +12V
GPIO(3.3V)	4*
SPI(3.3V)	1*
I2C(3.3V)	2*
RS 232	2*
Debug(UART)	1*
CAN	2*
Size	238 mm × 222 mm × 67 mm
Weight	2950g

12V AI Edge Computing Mini PC Windows Embedded GPU For Vehicles

Typical Installation

Ensure power off of all external system

Install the necessary external cables.(e.g. display cable connected to HDMI monitor,power input cable supplying power to the system, USB cable connecting keyboard and mouse...)

Connect the power cord to the power supply

8F5E2 could be set as default automatic power on or switch on. Please consult the sales and technical staff of our company for specific methods.
