Jetson Xavier ARM SBC Embedded System Nvidia NX Carrier Board

Name: Jetson Xavier ARM SBC Embedded System Nvidia NX Carrier Board
Brand: PLINK
Price: 650 USD

China Jetson Xavier ARM SBC Embedded System Nvidia NX Carrier Board factory

Brand Name : PLINK

Model Number : NX16g-DEV-03

Place of Origin : China

MOQ : 1

Price : $650-$690 \set

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 1+set+4weeks

Delivery Time : 15-30 work days

Packaging Details : 100x110x40mm

Adaptation Core : Jetson Xavier NX

Memory : 16 GB 128-bit LPDDR4x 59.7GB/s

Storage : 16 GB EMMC 5.1

Display : HDMI And DP

USB 3.0 : *4

Micro USB : *1

Single Package Size : 100x110x40mm

NAME : Jetson Xavier ARM SBC Embedded System Nvidia NX Carrier Board

Keyword : Jetson Xavier ARM SBC Embedded System Nvidia NX Carrier Board

Contact Now

Jetson Xavier ARM SBC Embedded System Nvidia NX Carrier Board

NVIDIA Jetson Xavier NX 16G Domestic developer kit NX16g-DEV-03

NVIDIA GPU development kit Jetson Xavier NX official kit and Jetson Xavier NX domestic self-developed kit are basically the same in Xavier NX module performance, onboard resources, size, interface layout, the difference is only in the domestic version of 16G eMMC storage, no TF card can be convenient to start the embedded sbc. also for industrial like adge AI.

NVIDIA Jetson Developer Kit NX16g-DEV Technical Specifications

CPU	6-core NVIDIA Carmel ARM v8.2 64-bit CPU 6MB L2 + 4MB L3
GPU	384-core NVIDIA Volta GPU with 48 Tensor Cores
Camera	2x MIPI CSI-2 DPHY lanes
Memory	16 GB 128-bit LPDDR4x 59.7GB/s
Storage	16 GB eMMC 5.1
Display	HDMI and DP
I/O	40-PIN GPIO
USB	4*USB 3.0
	1*USB 2.0(Otg)
Video Encode	2x 4K60 \| 4x 4K30 \| 10x 1080p60 \| 22x 1080p30 (H.264/H.265)
Video Decode	2x 8K30 \| 6x 4K60 \| 12x 4K30 \| 22x 1080p60 \| 44x 1080p30 (H.265) 2x 4K60 \| 6x 4K30 \| 10x 1080p60 \| 22x 1080p30 (H.264)
Other	FAN Header (GPIO,I2C,I2S,SPI,UART)
Size	91 mm x 104 mm x 35 mm

The Jetson Xavier NX is available in 8GB and 16GB versions. Please Contact us.
Diffrent Between Jetson Xavier NX domestic DEV-Kit and NVIDIA Jetson Xavier NX official DEV-Kit

	Jetson Xavier NX domestic DEV-Kit	NVIDIA Jetson Xavier NX official DEV-Kit
Memory	16/8 GB 128-bit LPDDR4x 59.7GB/s
Storage	16GB eMMC Expandable M.2 hard disk	No storage medium Expandable M.2 hard disk
GPU	384-core NVIDIA Volta GPU with 48 Tensor Cores
CPU	6-core NVIDIA Carmel ARM v8.2 64-bit CPU 6MB L2 + 4MB L3
Display	HDMI & DP
Camera	2x MIPI CSI-2 DPHY lanes
USB	4x USB 3.0, 1x USB 2.0 OTG
Size	91 mm x 104 mm x 35 mm

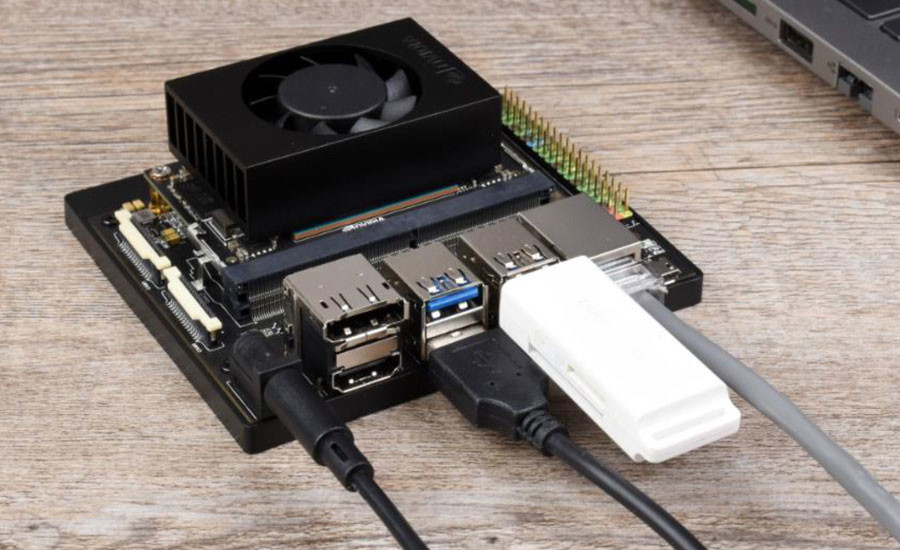

Jetson Xavier ARM SBC Embedded System Nvidia NX Carrier Board

Dimensions compatible with NVIDIA Jetson Xavier NX Developer Kit module

1/Support 2 CSI cameras

2/Support for M.2 M KEY NVME disks (PCIE X4 (PCIE Gen4))
3/M. 2 E KEY WIFI module (PCIE X1 (PCIE Gen3))

4/Supports DP/HDMI dual screen 4K output
